Rugged defence electronics design: Key enclosure features and compliance standards

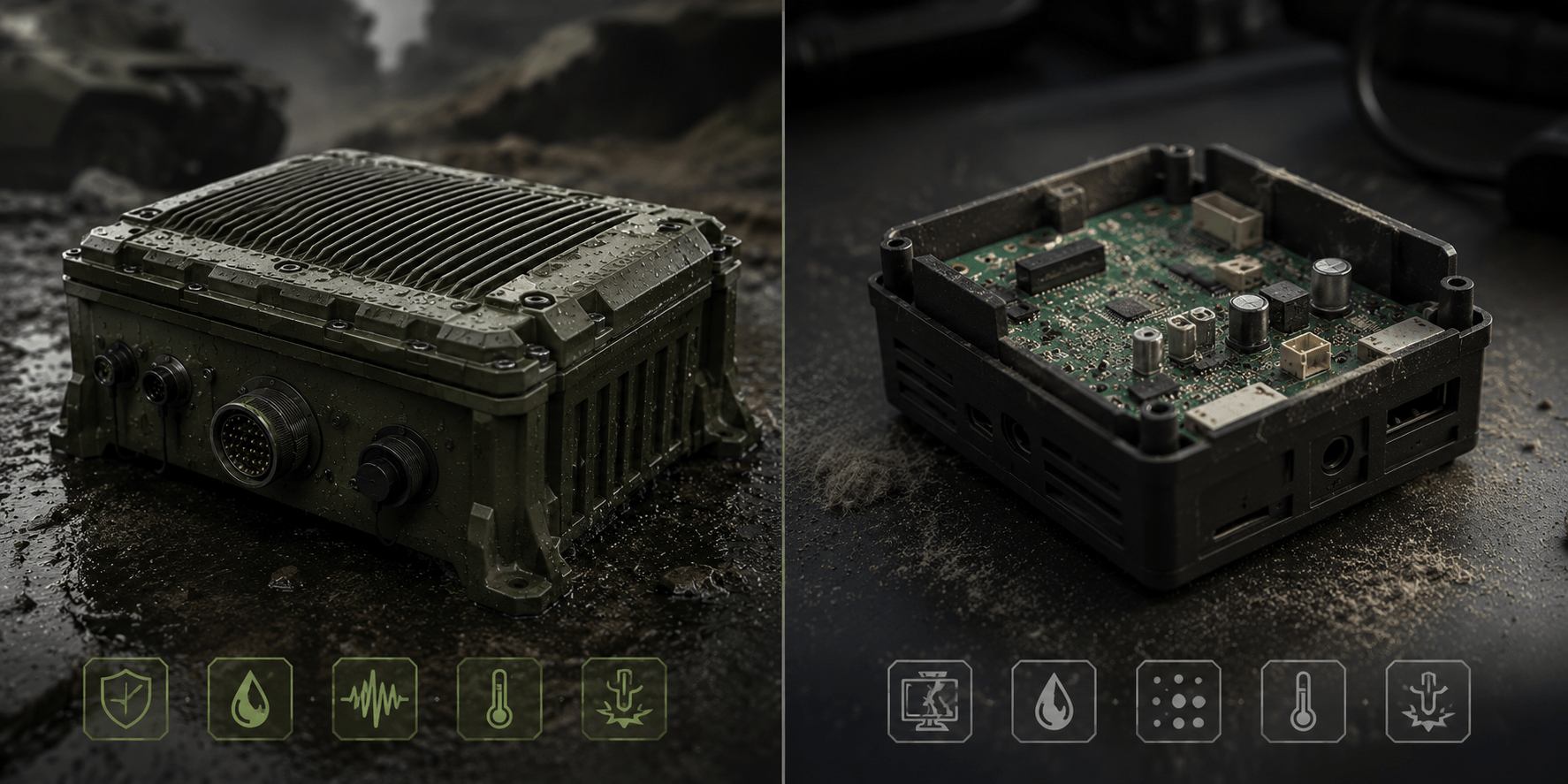

Rugged enclosures are the primary defence against system failures

Behind every piece of defence electronics that survives a battlefield, a maritime deployment or an aircraft hold, there is an enclosure doing work that rarely gets much credit. Rugged defence electronics design is the discipline of building the housings, seals and mechanical structures that keep sensitive circuitry alive through shock, vibration, water, dust, extreme temperature and rough handling, without adding so much bulk or weight that the equipment becomes unusable in the field. An expertly designed radio, sensor or flight controller is only as reliable as the case around it.

This final post in our eight-part series on defence electronics engineering looks at what makes an enclosure genuinely fit for defence use, where the trade-offs lie, and why enclosure design deserves the same early attention as the electronics it protects.

How is enclosure design an early-stage system decision?

It is common, even now, for enclosure design to begin once the electronics inside a product are largely finalised. This ordering causes more failed defence programmes than any single component fault. An enclosure is not a passive box. It manages heat dissipation, provides electromagnetic shielding, carries mechanical loads during shock and vibration events, and forms the primary barrier against water and particulate ingress. Every one of those functions interacts directly with decisions made elsewhere in the platform, from the power electronics discussed in our earlier post on tactical sensor power design to the radios covered in our post on choosing radios for defence deployments.

Treating the enclosure for defence electronics as a systems-level decision from the outset, rather than a mechanical wrapper applied at the end, is what separates equipment that survives operational use from equipment that looks impressive on a bench and fails in the field. This approach holds true regardless of whether the enclosure design is for aerospace and defence equipment, energy and power distribution substations, or industrial automation and robotics.

The environmental threats facing defence electronics in the field

Defence equipment operates in conditions that most commercial electronics never encounter. This includes a harsh gauntlet of natural, physical, and man-made environmental threats that these systems have to endure. Understanding the specific threats an enclosure has to defend against is the starting point for any sensible design.

Shock and vibration

Vehicle-mounted electronics experience sustained vibration from engines, road surfaces and, in tracked vehicles, considerably harsher mechanical noise than wheeled platforms produce. Air-dropped or man-portable equipment faces sudden shock loads from drops, impacts and rough handling that a seated vehicle electronics bay never sees.

These two failure modes require genuinely different design responses. Sustained vibration tends to cause fatigue failures over time, showing up as cracked solder joints or loosened fasteners after months of service rather than immediate breakage. Shock loading causes instantaneous failure risk, where a single drop or impact event can crack a housing or dislodge a component that survived thousands of hours of normal vibration. A platform that will experience both needs its enclosure tested against both failure modes rather than a single generic vibration or shock profile.

Blast overpressure

Blast overpressure is a different failure mode from shock and vibration. Where mechanical shock is a kinetic event acting on the mass of the unit, overpressure is a pressure wave acting directly on the enclosure’s surfaces, and it can affect equipment that has not been struck or displaced at all. This matters for vehicle-mounted and dismounted UK defence equipment, given the blast exposure associated with IED and munitions threats in recent operational environments.

The pressure wave itself can flex large flat panels or stress seams and joints in ways a drop or vibration test does not replicate, and the resulting pressure differential across a sealed enclosure can stress or displace gaskets, opening a separate ingress pathway from the wear-related seal fatigue discussed above. Internally, the instantaneous acceleration spike from a blast event can momentarily trip relays or cause contact chatter even where the housing shows no visible external damage, which means functional testing after a blast event matters as much as a structural inspection. Enclosures intended for platforms with credible blast exposure should be tested against recognised overpressure methods rather than assumed to be covered by standard shock and vibration qualification.

Ingress: water, dust and sand

Dismounted and expeditionary equipment is routinely exposed to rain, immersion, blown sand and fine dust, particularly in desert and coastal operating environments. Ingress is rarely a single dramatic failure, and is often a slow accumulation of moisture or particulate matter that corrodes connectors and degrades insulation over months of use.

Fine sand and dust present a particular challenge because they exploit gasket and seal designs that perform well against water alone. Particulate ingress can work its way into seal interfaces during repeated mechanical cycling, such as a connector being mated and unmated in the field, gradually degrading a seal that passed its original qualification test comfortably. Enclosure designs intended for desert or coastal deployment need ingress testing that reflects that repeated-use reality, not just a single as-delivered test.

Thermal extremes

Equipment fielded across UK defence programmes has to function from cold-weather deployments through to hot, high-humidity theatres, often within the same procurement cycle. An enclosure that traps heat generated by the electronics inside it can shorten component life just as effectively as an external thermal extreme.

Sealed enclosures make this worse by removing convective airflow as a cooling option, which pushes thermal management onto conduction paths, heat sinking and material selection rather than fans or vents that would otherwise compromise ingress protection. This trade-off between sealing and cooling has to be resolved at the enclosure design stage, since adding thermal relief after a sealed design is finalised usually means starting the mechanical design again.

Man-made electromagnetic threats: EMP and radiated fields

Alongside naturally occurring environmental stresses, defence enclosures increasingly need to account for man-made electromagnetic threats, including electromagnetic pulse (EMP) and high-intensity radiated fields. Unlike jamming or interference affecting a specific radio link, which is a systems and radio-design problem covered in detail in our earlier post on EMI and EMC in defence electronics, EMP and radiated field threats are primarily an enclosure-level concern: the housing itself is the first and sometimes only line of defence before an external field reaches the electronics inside.

Shielding effectiveness against these threats depends heavily on details that are easy to overlook at the concept stage. Seams, access panels and any gap in a conductive enclosure act as apertures that a field can couple through, regardless of how well-shielded the main body is. Gasket conductivity across those seams, rather than gasket compression alone, determines whether a joint maintains its shielding performance under real mechanical tolerances. Cable entry points need equal attention, since an unfiltered cable can carry an induced transient straight past an otherwise well-shielded housing and into the circuitry it was meant to protect.

Ionising radiation is a further consideration for platforms operating in or near CBRN-contaminated (chemical, biological, radiological and nuclear) environments, though it falls outside the scope of most conventional UK defence electronics programmes and is generally addressed through dedicated hardening requirements rather than standard enclosure design practice.

For platforms where radiated field and EMP resilience form part of the operational requirement, enclosure shielding needs to be specified and tested as a discrete requirement alongside shock, vibration and ingress protection, not assumed as a by-product of a metal housing.

What do IP Ratings, MIL-STD-810H, and DEF STAN 00-35 guarantee?

IP (ingress protection) ratings and military test standards are essential reference points, but they are frequently misunderstood as guarantees of real-world performance rather than what they are: results against a specific, defined test procedure. An enclosure rated IP67 has demonstrated resistance to temporary immersion under controlled laboratory conditions. That is a useful and necessary data point, but it says little about its performance after repeated thermal cycling, prolonged vibration-induced seal fatigue, or the combined effect of several stresses acting together, which is closer to how equipment actually fails in deployment service.

MIL-STD-810H, the standard developed by the US Department of Defence, is widely used across the UK and allied NATO defence programmes as a framework for environmental test methods covering shock, vibration, temperature, humidity and altitude, among others. It is a methodology standard rather than a pass or fail certification for a whole product, and test conditions have to be selected deliberately to reflect a platform’s genuine deployment profile. A design tested only against the methods most convenient to demonstrate, rather than those most representative of actual use, can carry a MIL-STD-810H reference without offering the assurance a programme manager might reasonably assume it provides.

DEF STAN 00-35, the MOD’s Environmental Handbook for Defence Materiel, is the primary UK reference for environmental test and design requirements, and it takes a deliberately flexible, performance-based approach. Rather than prescribing a fixed set of tests, it is intended to be tailored to the specific environmental conditions a platform will actually encounter, which puts the responsibility on the design team to define that operating envelope accurately rather than defaulting to a generic severity level.

Neither standard is a pass or fail certification for a whole product. Both depend on test conditions being selected deliberately to reflect a platform’s genuine deployment profile, and a design tested only against the methods most convenient to demonstrate, rather than those most representative of actual use, can carry either reference without offering the assurance a programme manager might reasonably assume it provides. In addition, both standards are designed for interoperability and built to meet international defence and industrial demands.

For programme managers, the practical implication is that rugged defence electronics design needs to be evidenced and traceable to the specific standards, test methods and severity levels a contract requires, rather than presented as a general claim of ruggedness. Vague assurances of durability do not satisfy an assurance review in the way that documented test reports against agreed methods do.

This traceability matters even more on programmes involving multiple suppliers, where enclosure qualification performed by one party has to be defensible to the prime contractor and, ultimately, to the end customer. A test report that clearly states the method, severity level and pass criteria used is far more useful at that point than a compliance certificate that simply asserts a standard has been met.

Materials and mechanical design for weight-conscious platforms

Rugged defence electronics design for weight-conscious platforms (e.g., UAVs, aerospace systems, and tactical ground vehicles) requires balancing the classic SWaP-C constraints: Size, Weight, Power, and Cost. The goal is to maximise capability while ensuring structural survivability in extreme combat and environmental conditions.

Material choice for a defence electronics enclosure is rarely a simple contest between strength and cost. Aluminium alloys remain a common choice for their favourable strength-to-weight ratio and natural electromagnetic shielding properties, which connect directly to the shielding requirements we set out in our earlier post on EMI and EMC in defence electronics. Engineering polymers and composites offer weight savings and design flexibility, particularly for dismounted and man-portable equipment where every gram affects a soldier’s carried load, though they typically require additional conductive coating or gasketing to achieve equivalent shielding performance to metal housings.

Mechanical design choices such as rib placement, wall thickness and mounting point location determine how shock and vibration loads are distributed through the enclosure to the electronics inside. Poor mounting design can concentrate stress at connector points or circuit board edges, which are usually the first places a system fails under sustained vibration, regardless of how robust the outer housing itself is.

Vibration isolation mounts and conformal coating on internal boards are sometimes treated as substitutes for good enclosure mechanical design, when they are better understood as complementary measures. An enclosure that transmits excessive shock loads to its internal electronics will eventually cause failures that isolation mounts and coatings can delay but not prevent indefinitely.

Connectors and sealing: Where rugged defence electronics design typically fails

Enclosure walls for rugged platforms rarely cause field failures on their own. Connectors, cable glands and access panels are where sealing integrity most often breaks down, because every interface is a compromise between environmental protection and the practical need to connect cables, replace batteries or access equipment for maintenance.

This is a genuine tension rather than a solved problem. A fully potted, sealed-for-life enclosure offers excellent environmental protection but makes field repair or component upgrade impractical. A design with accessible panels and serviceable connectors supports maintainability but introduces more potential ingress points that need to be actively managed through gasket selection, connector locking mechanisms and clear maintenance procedures.

Defence electronics enclosure design and firmware update access

Rugged defence electronics design decisions will also affect how equipment is updated and maintained once fielded. A fully sealed enclosure with no accessible debug or programming port pushes update delivery entirely onto wireless mechanisms, which makes the secure over-the-air update architecture covered in our earlier post on secure OTA for defence IoT a functional requirement rather than a convenience. Conversely, an enclosure with an accessible service port needs that port to be physically protected and electronically locked down, echoing the debug interface hardening discussed in our post on secure firmware for defence systems.

These decisions are easy to overlook because they sit at the boundary between mechanical and firmware engineering teams, who do not always review each other’s requirements closely enough during early design. A programme that specifies its update strategy and its enclosure sealing approach independently often discovers the mismatch only after physical prototypes exist.

What programme managers and procurement teams should ask suppliers

For decision makers assessing a supplier’s rugged enclosure capability, a focused set of questions tends to separate genuine engineering rigour from marketing language:

• Which specific DEF STAN or MIL-STD-810H test methods and severity levels were used, and were they selected against your platform’s actual deployment profile?
• Can you provide full environmental test reports rather than summary compliance statements?
• How does the enclosure’s shielding performance integrate with the EMI and EMC requirements for the electronics inside it?
• What is the field maintenance and repair strategy for this enclosure, and how does that affect its sealing performance over time?
• How does enclosure design accommodate firmware updates and diagnostic access without compromising environmental sealing?

Suppliers who can answer these with documented evidence, rather than general reassurance, are the ones worth building a long-term defence programme relationship with.

Final thoughts on rugged enclosures for defence electronics

Across this series, we have covered LoRa connectivity, MAVLink integration for UAVs, secure over-the-air updates, tactical sensor power design, EMI and EMC compliance, radio selection for deployment, secure firmware, and now the enclosures that physically protect all of it. None of these disciplines function well in isolation. A rugged enclosure with excellent sealing but poor thermal design will shorten the life of the power electronics inside it. A well-shielded enclosure paired with a poorly specified radio will still suffer interference.

Durable enclosures for defence electronics result from treating mechanical, electrical, firmware and communications design as one integrated problem, which has been the central theme running through this entire series. Get in touch to discuss rugged enclosure design for your next defence programme.
